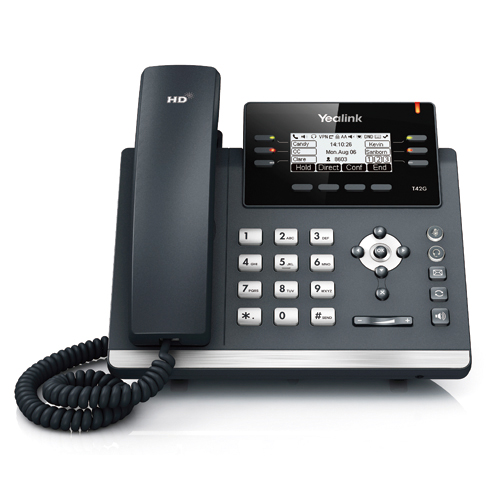

Yealink Elegant 6-Line Business GbE VoIP SIP IP Phone

T42G Yealink 6-Line Phone

The SIP-T42G is a feature-rich sip phone for business. The 6-Line IP Phone has been designed by pursuing ease of use in even the tiniest details. Delivering a superb sound quality as well as rich visual experience. Supports seamless migration to GigE-based network infrastructure. With programmable keys, the IP Phone supports vast productivity-enhancing features. Using standard encryption protocols to perform highly secure remote provisioning and software upgrades.

  • Revolutionarily new design
  • Yealink Optima HD voice
  • Dual-port Gigabit Ethernet
  • 2.7" 192x64-pixel graphical LCD with backlight
  • Up to 6 SIP accounts
  • Paper label free design
  • PoE support
  • Headset, EHS support
  • Integrated stand with 2 adjustable angles
  • Wall Mountable

Audio Features

  • HD voice: HD handset, HD speaker
  • Wideband codec: G.722
  • arrowband codec: G.711(A/μ), G.723, G.729AB, G.726, GSM, iLBC
  • DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

  • 6 VoIP accounts
  • One-touch speed dial, redial
  • Call forward, call waiting, call transfer, call hold
  • Call return, group listening
  • Mute, auto answer, DND
  • 3-way confernece call
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Hotline, emergency call
  • Set date time manually or automatically
  • Dial plan, XML Browser, action URL/URI

 Directory

  • Local phonebook up to 1000 entries
  • Black list
  • XML/LDAP remote phonebook
  • Intelligent search method
  • Phonebook search/import/export
  • Call history: dialed/received/missed/forwarded

 IP-PBX Features

  • Busy lamp field (BLF)
  • Bridged line apperance(BLA)/SCA
  • Anonymous call, anonymous call rejection
  • Message Waiting Indicator (MWI)
  • Voice mail, call park, call pickup
  • Intercom, paging, music on hold
  • Call recording

Display and Indicator

  • 2.7" 192x64-pixel graphical LCD with backlight
  • LED for call and message waiting indication
  • Dual-color (red or green) illuminated LEDs for
  •    line status information
  • Intuitive user interface with icons and soft keys
  • National language selection
  • Caller ID with name, number

Feature keys

  • 6 line keys with LED
  • 6 line keys can be programmed up to 15
  •     various features (3-page view)
  • 5 features keys: message, headset, mute,
  •    redial, hands-free speakerphone
  • 4 context-sensitive “soft” keys
  • 6 navigation keys
  • 2 volume control keys
  • Illuminated mute key
  • Illuminated headset key
  • Illuminated hands-free speakerphone key

Interface

  • Dual-port Gigabit Ethernet
  • 1xRJ9 (4P4C) handset port
  • 1xRJ9 (4P4C) headset port
  • Power over Ethernet (IEEE 802.3af), Class 2
Other Physical Features
  • Stand with 2 adjustable angles
  • Wall mountable (sold separately)
  • External Universal AC Adapter (sold separately):
  •     AC 100~240V input and DC 5V/1.2A output
  • Power consumption (PSU): 1.4W-3.9W
  • Dimension(W*D*H*T):
  •    212mm*189mm*175mm*54mm
  • Operating humidity: 10~95%
  • Storage temperature: -10~50°C

Management

  • Configuration: browser/phone/auto-provision
  • Auto provision via FTP/TFTP/HTTP/HTTPS
  •    for mass deploy
  • Auto-provision with PnP
  • BroadSoft device management
  • Zero-sp-touch
  • Provisioning server redundancy supported
  • Reset to factory, reboot
  • Package tracing export, system log



Network and Security

  • SIP v1 (RFC2543), v2 (RFC3261)
  • NAT transverse: STUN mode
  • Proxy mode and peer-to-peer SIP link mode
  • IP assignment: static/DHCP
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • UDP/TCP/DNS-SRV(RFC 3263)
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS
  •    DSCP
  • SRTP for voice and video
  • Transport Layer Security (TLS)
  • HTTPS certificate manager
  • AES encryption for configuration file
  • Digest authentication using MD5/MD5-sess
  • OpenVPN, IEEE802.1X
  • IPv6
