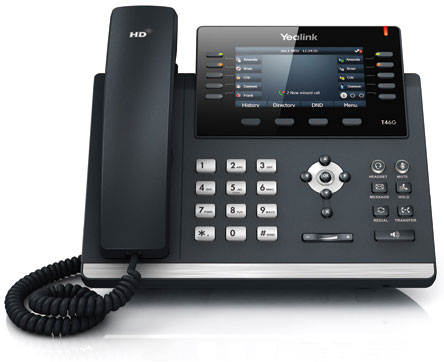

The SIP-T46G is a feature-rich sip phone for business. The 10-Line IP Phone has been designed by pursuing ease of use in even the tiniest details. Delivering a superb sound quality as well as rich visual experience. Supports seamless migration to GigE-based network infrastructure. With programmable keys, the IP Phone supports vast productivity-enhancing features. Using standard encryption protocols to perform highly secure remote provisioning and software upgrades.
- Revolutionarily new design
- Yealink Optima HD voice
- Dual-port Gigabit Ethernet
- 4.3" 480 x 272-pixel color
display with backlight
- Up to 16 SIP accounts
- Paper label free design
- PoE(802.3af) class support
- Headset, EHS support
- Integrated stand with 2 adjustable angles
- Wall Mountable
Audio Features
- HD voice: HD handset, HD speaker
- Wideband codec: G.722
- arrowband codec: G.711(A/μ), G.723, G.729AB, G.726, GSM, iLBC
- DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
- Full-duplex hands-free speakerphone with AEC
- VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
- 3 VoIP accounts
- One-touch speed dial, redial
- Call forward, call waiting, call transfer, call hold
- Call return, group listening
- Mute, auto answer, DND
- 3-way confernece call
- Direct IP call without SIP proxy
- Ring tone selection/import/delete
- Hotline, emergency call
- Set date time manually or automatically
- Dial plan, XML Browser, action URL/URI
Directory
- Local phonebook up to 1000 entries
- Black list
- XML/LDAP remote phonebook
- Intelligent search method
- Phonebook search/import/export
- Call history: dialed/received/missed/forwarded
IP-PBX Features
- Busy lamp field (BLF)
- Bridged line apperance(BLA)/SCA
- Anonymous call, anonymous call rejection
- Message Waiting Indicator (MWI)
- Voice mail, call park, call pickup
- Intercom, paging, music on hold
- Call recording
Display and Indicator
- 2.7" 192x64-pixel graphical LCD with backlight
- LED for call and message waiting indication
- Dual-color (red or green) illuminated LEDs for
line status information
- Intuitive user interface with icons and soft keys
- National language selection
- Caller ID with name, number
Feature keys
- 6 line keys with LED
- 6 line keys can be programmed up to 15
various features (3-page view)
- 5 features keys: message, headset, mute,
redial, hands-free speakerphone
- 4 context-sensitive “soft” keys
- 6 navigation keys
- 2 volume control keys
- Illuminated mute key
- Illuminated headset key
- Illuminated hands-free speakerphone key
Interface
- Dual-port Gigabit Ethernet
- 1xRJ9 (4P4C) handset port
- 1xRJ9 (4P4C) headset port
- Power over Ethernet (IEEE 802.3af), Class 2
Other Physical Features
- Stand with 2 adjustable angles
- Wall mountable (sold separately)
- External Universal AC Adapter (sold separately):
AC 100~240V input and DC 5V/1.2A output
- Power consumption (PSU): 1.4W-3.9W
- Dimension(W*D*H*T):
212mm*189mm*175mm*54mm
- Operating humidity: 10~95%
- Storage temperature: -10~50°C
Management
- Configuration: browser/phone/auto-provision
- Auto provision via FTP/TFTP/HTTP/HTTPS
for mass deploy
- Auto-provision with PnP
- BroadSoft device management
- Zero-sp-touch
- Provisioning server redundancy supported
- Reset to factory, reboot
- Package tracing export, system log
Network and Security
- SIP v1 (RFC2543), v2 (RFC3261)
- NAT transverse: STUN mode
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: static/DHCP
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV(RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS
DSCP
- SRTP for voice and video
- Transport Layer Security (TLS)
- HTTPS certificate manager
- AES encryption for configuration file
- Digest authentication using MD5/MD5-sess
- OpenVPN, IEEE802.1X
- IPv6
