Router and Switch Quality of Service Essentials

10-Port 1u Rackmount Router RB3011-UiAS-RM

SFP DDMI
CPU core count 2 x 1.4Ghz
Size of RAM 1GB
10/100 Ethernet ports
10/100/1000 Ethernet ports 10
MiniPCI slots
MiniPCI-e slots
Power Jack 10-30V DC
Number of USB ports 1
802.3af support
PoE Yes
CPU temperature monitor No
Dimensions 443x92x44mm
Operating System RouterOS
Temperature range -30 + 70 C
License level L5
Current Monitor No
CPU IPQ-8064
SFP ports 1
USB slot type USB 3.0 type A
Voltage Monitor Yes
PCB temperature monitor Yes
Max Power consumption 10W

>

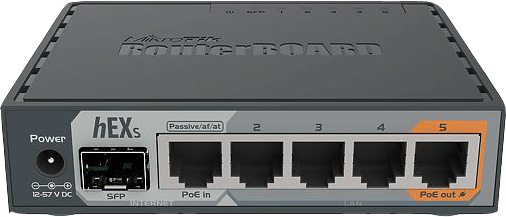

5-Port Router hEX S

CPU core count 2 x 880MHz
Size of RAM 256MB
10/100/1000 Ethernet ports 5
MiniPCI slots
MiniPCI-e slots
Power Jack 10-30V DC
Number of USB ports 1
802.3af support
PoE Yes
CPU temperature monitor No
Dimensions 113 x 89 x 28 mm
Operating System RouterOS
Temperature range -30 + 70 C
License level 4
Current Monitor No
CPU MT7621A
SFP ports 1
USB slot type USB type A
Voltage Monitor Yes
PCB temperature monitor Yes
Max Power consumption 11W

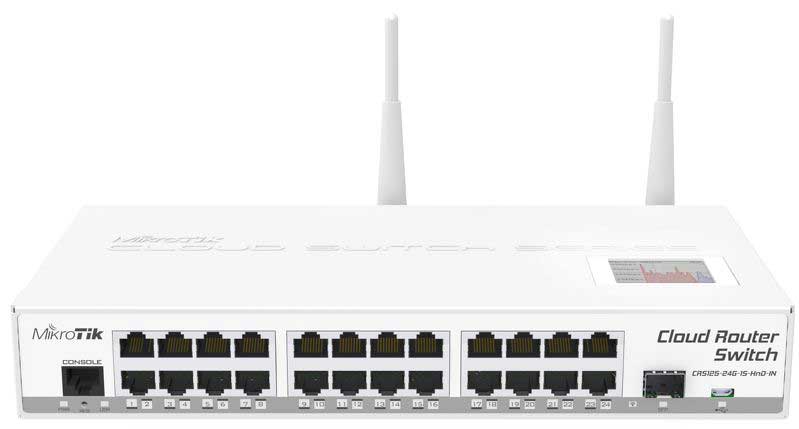

24-Port Switch/Router with Wireless CRS125-24G

**CPU nominal frequency600 MHz
SFP DDMI
CPU core count1
Size of RAM128MB
10/100 Ethernet ports
10/100/1000 Ethernet ports24
MiniPCI slots
MiniPCI-e slots
Wireless chip model
Power Jack 8-28V DC
Number of USB ports 1
Wireless standards 802.11b/g/n
802.3af support
PoE
Voltage Monitor
PCB temperature monitor Yes
CPU temperature monitor No
Dimensions 285x145x45mm
Operating System RouterOS
Temperature range -35C to +65C
License level L5
Current Monitor No
CPU AR9344-DC3A-R
Antenna gain 4dbi
TX power 30dBm
SFP ports
USB slot type microUSB type AB
Max Power consumption

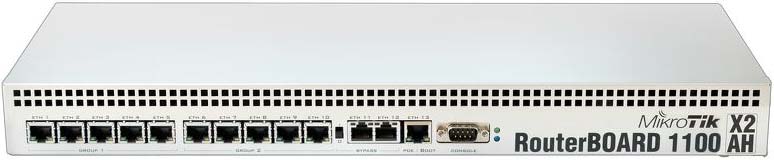

13-Port Router-Switch RB1100AHx2

PowerPC P20201066MHz
SFP DDMI
CPU core count2
Size of RAM2GB
10/100 Ethernet ports
10/100/1000 Ethernet ports24
IPsec AcceleratorYes
MiniPCI-e slots
Wireless chip model
Power Jack 8-28V DC
Number of USB ports 1
Wireless standards N/A
802.3af support
PoE 12-24V on Port 13
Voltage Monitor
PCB temperature monitor No
CPU temperature monitor No
Dimensions 44 x 176 x 442 mm
Operating System RouterOS
Temperature range -35C to +65C
License level L6
Current Monitor No
CPU PowerPC P2020
Antenna gain N/A
TX power N/A
SFP ports
Serial Port One DB9 RS232C
Max Power consumption

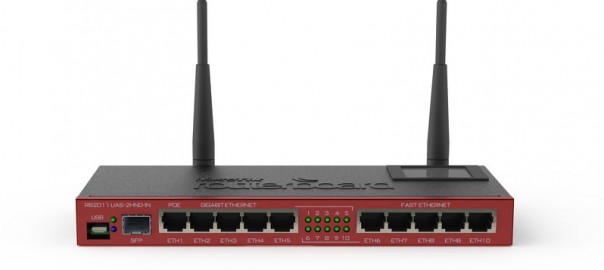

10-Port Router with Wireless RB2011UiAS-2HnD-IN

**CPU nominal frequency600 MHz
SFP DDMINo
CPU core count1
Size of RAM128MB
10/100 Ethernet ports5
10/100/1000 Ethernet ports5
MiniPCI slots
MiniPCI-e slots
Wireless chip modelAR9344-DC3A
Power Jack 8-28V DC
Number of USB ports 1
Wireless standards 802.11b/g/n
802.3af support No
PoE 8-28V DC on Ether1
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor No
Dimensions
Operating System RouterOS
Temperature range -35C to +65C
License level L5
Current Monitor No
CPU AR9344-DC3A
Antenna gain 4dbi
TX power 30dBm
SFP ports 1
USB slot type microUSB type AB
Max Power consumption 11W

SoHo 5-Port Router with Wireless RB951G-2HnD

**CPU nominal frequency600Mhz
SFP DDMINo
CPU core count1
Size of RAM128MB
10/100 Ethernet ports
10/100/1000 Ethernet ports5
MiniPCI slots
MiniPCI-e slots
Wireless chip modelAR9344-BC2A
Power Jack 8-28V DC
Number of USB ports 1
Wireless standards 802.11b/g/n
802.3af support No
PoE 8-30V DC on Ether1
Voltage Monitor No
PCB temperature monitor No
CPU temperature monitor No
Dimensions 113x138x29mm
Operating System RouterOS
Temperature range -20C to +50C
License level L4
Current Monitor No
CPU AR9344-DC3A
Antenna gain 2.5dBi
TX power 30dBm
SFP ports
USB slot type microUSB type AB
Max Power consumption

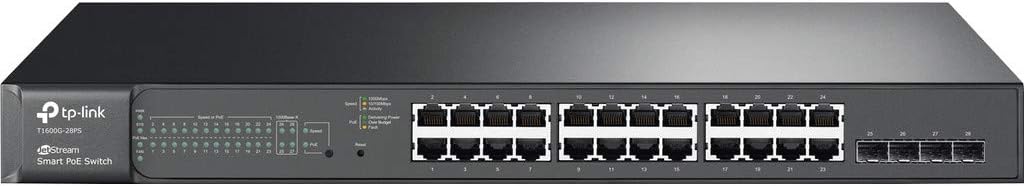

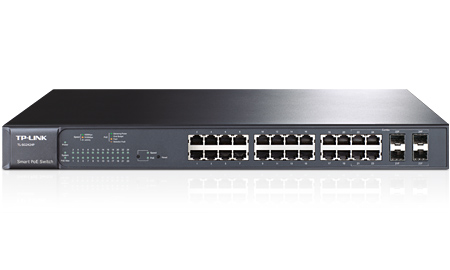

24-Port PoE Switch

  • Supports 24 ports of802.3at/af-compliant Power over Ethernet with a total power supply of 320W
  • IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video application
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features
